規格--750彩鋼瓦成型機
|
序號 |
主要組件 |
規格 |
備注 |
|
1 |
軸 |
調質45鋼 |
18道 |
|
2 |
輥輪 |
軸承鋼 |
|
|
3 |
墻板 |
A3鋼(18-20mm) |
|
|
4 |
傳動 |
鏈條或齒輪箱 |
|
|
5 |
切斷 |
液壓剪切 |
|
|
6 |
電機功率 |
7.5KW |
|
|
7 |
控制系統 |
松下PLC，安川變頻器 |
|
優勢---750彩鋼瓦成型機
? 高強度，經久耐用
此設備機架采用國標300/350工字鋼，各組件、標準件一律采用國標產品，絕無空心軸等省料現象。設備運行穩定、操作簡單，能充分保障您的生產進度。
? 加工工序精細復雜
此設備壓制輥輪經數控粗加工、淬火、二次精車、電鍍等多步工序，精度高，跳動小，強度高，成型美觀，無刮傷，無變形，充分保障您的產品質量。
? 交貨快，售后積極
此設備交貨期一般為30天，整機保修一年，終身維護。
Main technical specification
1. Coil width: 940mm
2. Material thickness: 0.45mm-0.5mm，G550
3. Forming speed: 0-15m/min
4. Roll station: upper 20 stations, down 18 stations
5. Main power:7.5kw
6. Hydraulic power:4 kw
7. Control system: PLC Panasonic
8. Drive: by chain
Specification of the material
1.Suitable Material: Colored Steel plate, Galvanized steel
2.Width of the raw material: 1250mm
3.Thickness: 0.3mm-0.8mm
This machine adopts electric pre-cutter: two pieces ( top layer and bottom layer) It is used when changing the coil of raw material; it can cut the coil rapidly and time-saving.

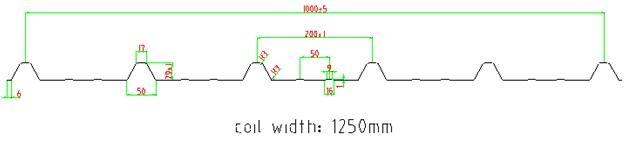

Profile drawing
The Chart of Process Flow
10T Hydraulic Uncoiler—Roll Forming—Track cutting—Auto stacker
Machine Detailed Parameters
|
1 |
Coil width |
1250mm |
|
2 |
Rolling Speed |
0-35m/min |
|
3 |
Rolling Thickness |
0.3-0.8mm |
|
4 |
Control System |
PLC (Panasonic) as list in the note |
|
5 |
Un Coiler |
5T hydraulic de-coiler |
|
6 |
Roller Stations |
20 stations |
|
7 |
Roller Material |
ASTM1045 chrome plated surface with chrome |
|
8 |
Shaft Material and DIA |
￠76mm material:45# with quenching and tempering |
|
9 |
Post track cutting |
The main machine won’t stop when cutting, 2.9kw servo motor |
|
10 |
Maim Motor Power |
15kw |
|
11 |
Hydraulic Station Power |
5.5kw with storage tank and air cooling system |
|
12 |
Hydraulic Pressure |
12-16Mpa adjustable |
|
13 |
Material Of Cutting |
CR12with heat treatment |
|
14 |
Structure Of The Stations |
Iron cast |
|
15 |
Tolerance |
3m+-1.5mm |
|
16 |
Electric Source |
380V, 50HZ,3 phase According to customer’s require |
|
17 |
Way Of Drive |
By gear box |
